LORRAINE
3.5mm Distal Humerus System
LORRAINE
3.5mm Distal Humerus System
The LORRAINE 3.5mm Distal Humerus System
1
2
5
3
4
For precise plate application
For soft tissue application
Variable angle locking holes (15° angulation)
For cortical and VA screws
Oblong hole allowing for interfragmentary compression

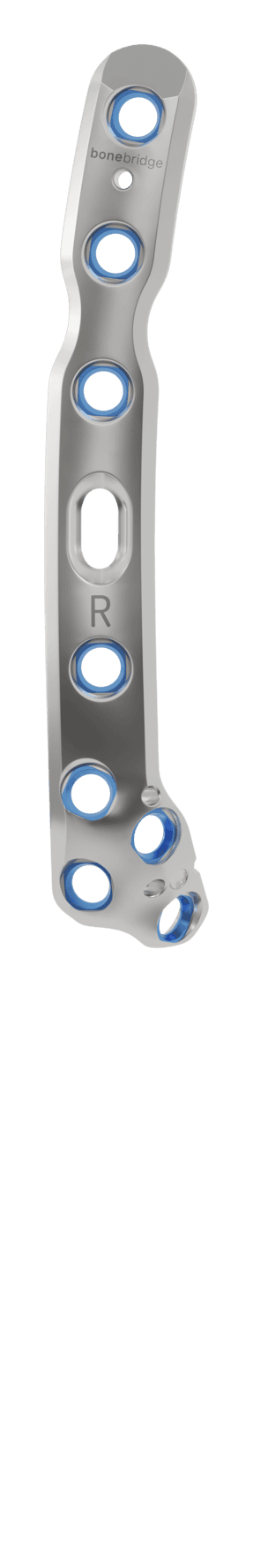

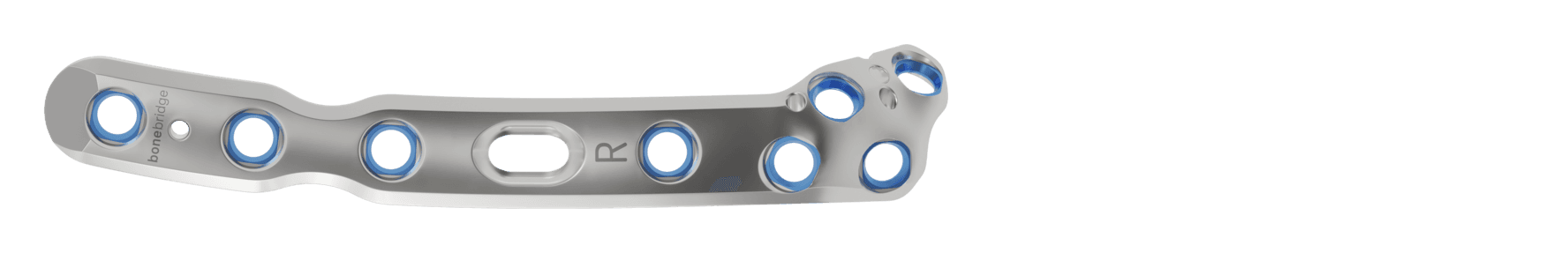

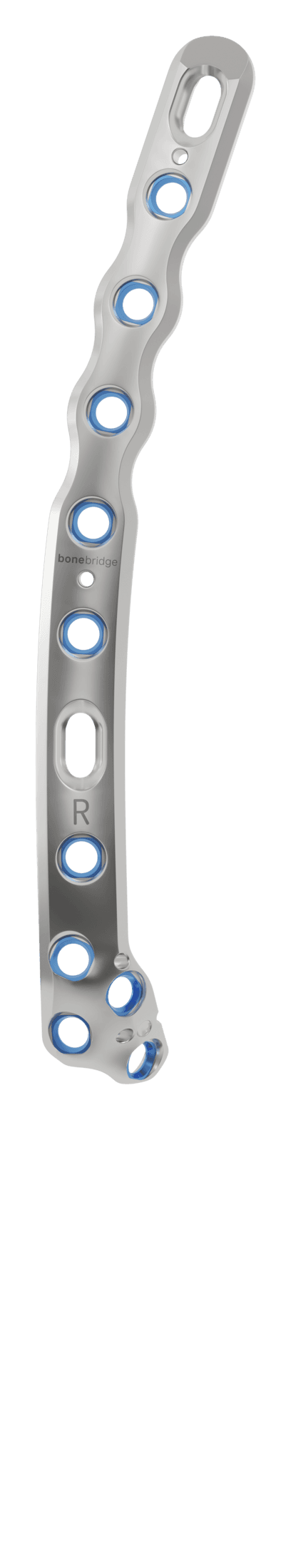

The LORRAINE Posterolateral
5 Hole | 99mm length
8 Hole | 142mm length

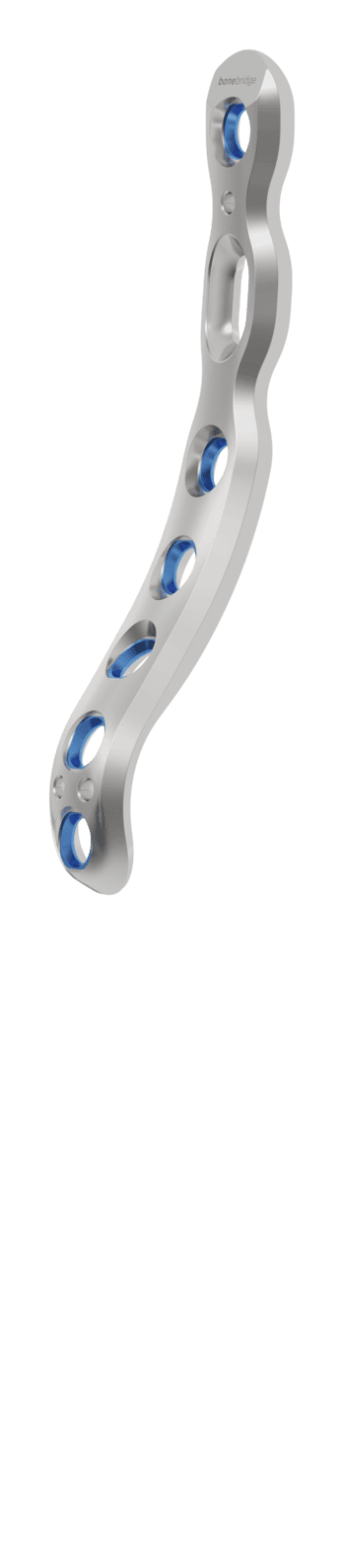

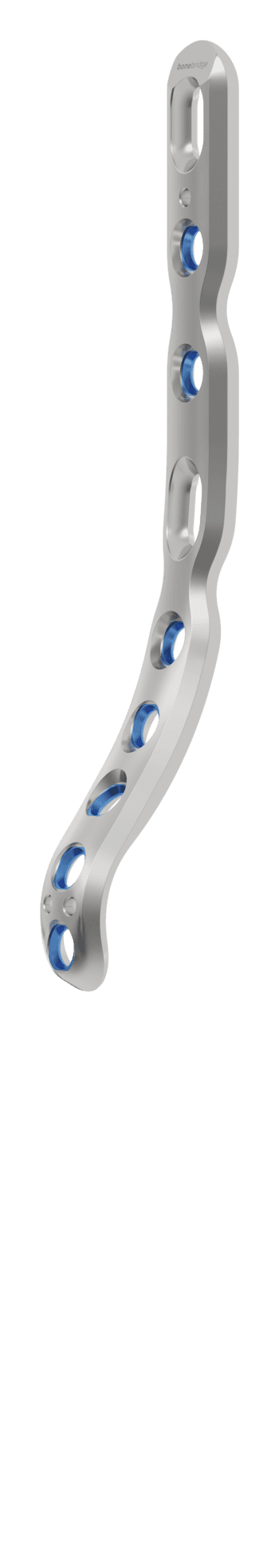

The LORRAINE Medial
4 Hole | 81mm length
6 Hole | 113mm length

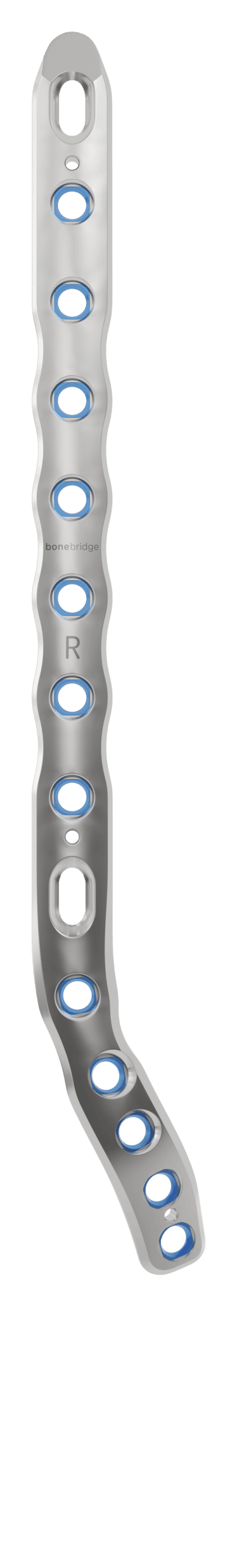

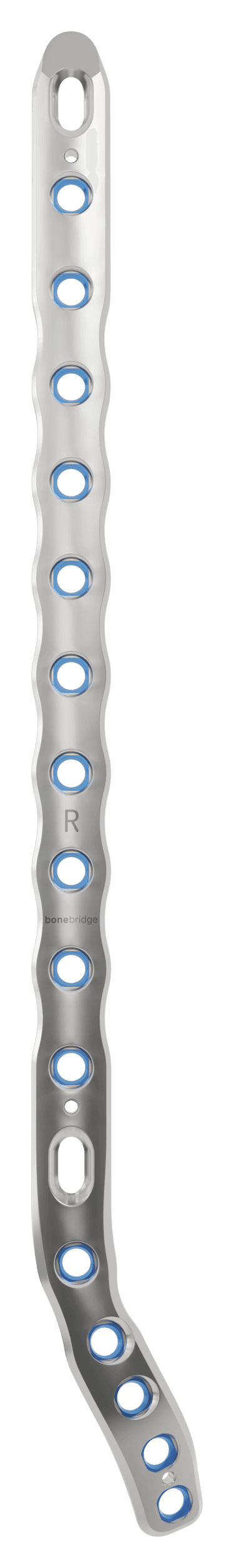

The LORRAINE Extraarticular
10 Hole | 190mm length
13 Hole | 235mm length
“The LORRAINE plates are designed to reduce complexity in the treatment of distal humerus fractures. They merge the advantages of orthogonal and parallel plating by allowing the best possible lateral plate position with screw options into the capitellum and the trochlea at the same time. The streamlined LORRAINE plate portfolio covers all distal humerus fractures – from simple extraarticular to complex intraarticular with just one 3.5mm instrument set.”
Christian Spross, MD
Chief of Orthopaedics Stadtspital Zürich, Head of Shoulder & Elbow Surgery, Head of Orthopaedic Trauma
Stadtspital Zürich Triemli, Switzerland
A COMPREHENSIVE SOLUTION
The LORRAINE System covers both simple and complex distal humerus fractures while adhering to our reducing complexity principle. An optimized number of plates provides the surgeon with targeted solutions for both intra-articular and extra-articular fractures of the distal humerus.
COMPLEMENTARY DESIGNS
With its carefully designed shape, the LORRAINE Posterolateral Distal Humerus Plate (PLR) combines the advantages of lateral and posterior plating: The curvature on its distal end allows screws to be securely placed into the capitulum and longer screws to be directed towards the trochlea. In complex articular fractures, the plate is an ideal complement to the LORRAINE Medial Distal Humerus Plate for orthogonal plating, providing a less invasive solution yet providing sufficient stability.
ANATOMICAL FIT
The LORRAINE Extraarticular Distal Humerus Plate features an enhanced shaft design that allows for a precise fit when treating extraarticular fractures. The plate is tapered to minimize soft tissue irritation. It features an increased screw density in the distal portion of the plate and an optimized screw configuration with the two most distal screw trajectories towards the capitulum and trochlea.

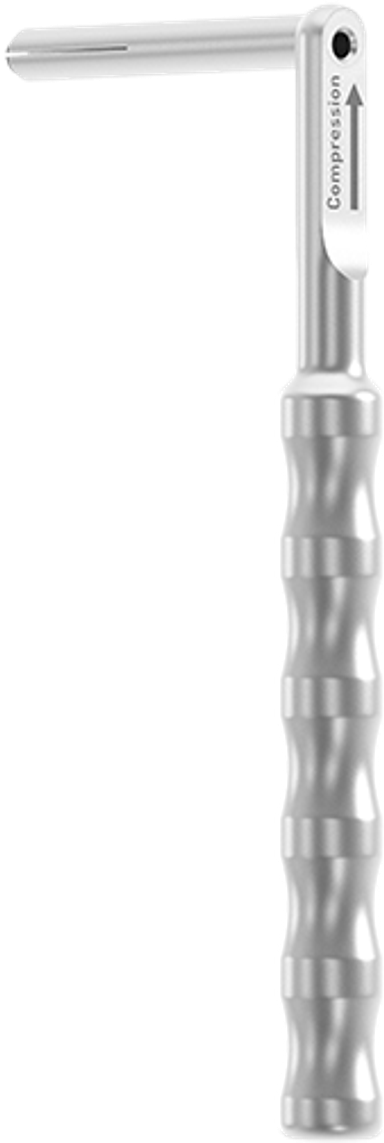

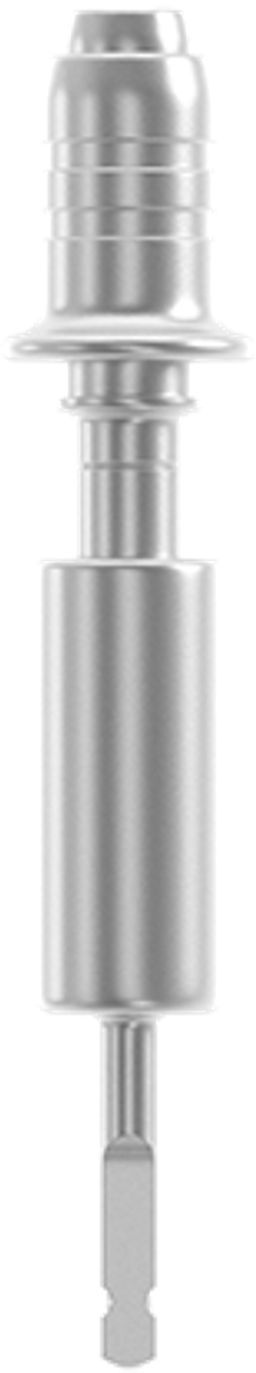

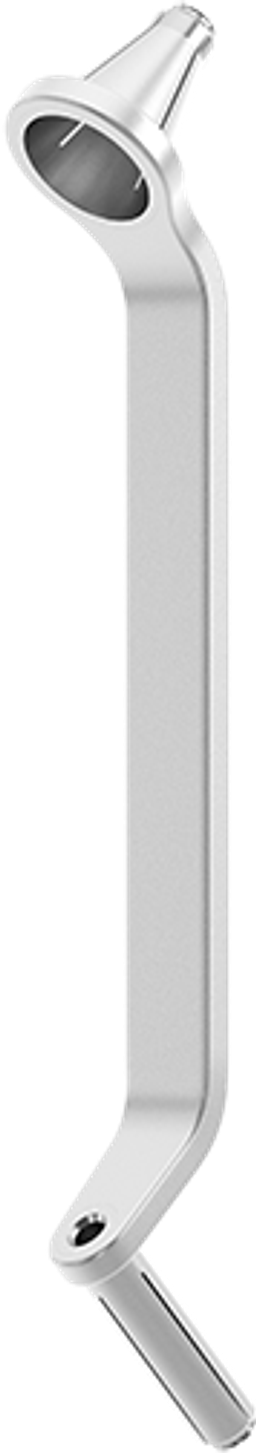

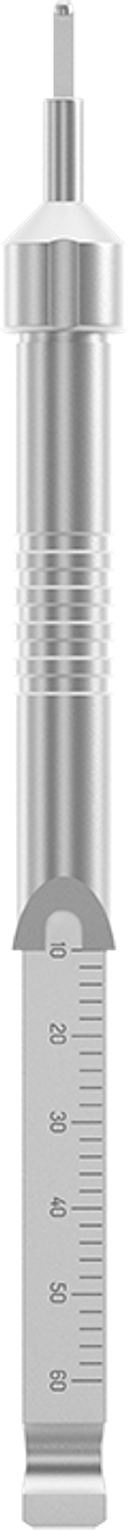

The LORRAINE 3.5mm Instrument Set

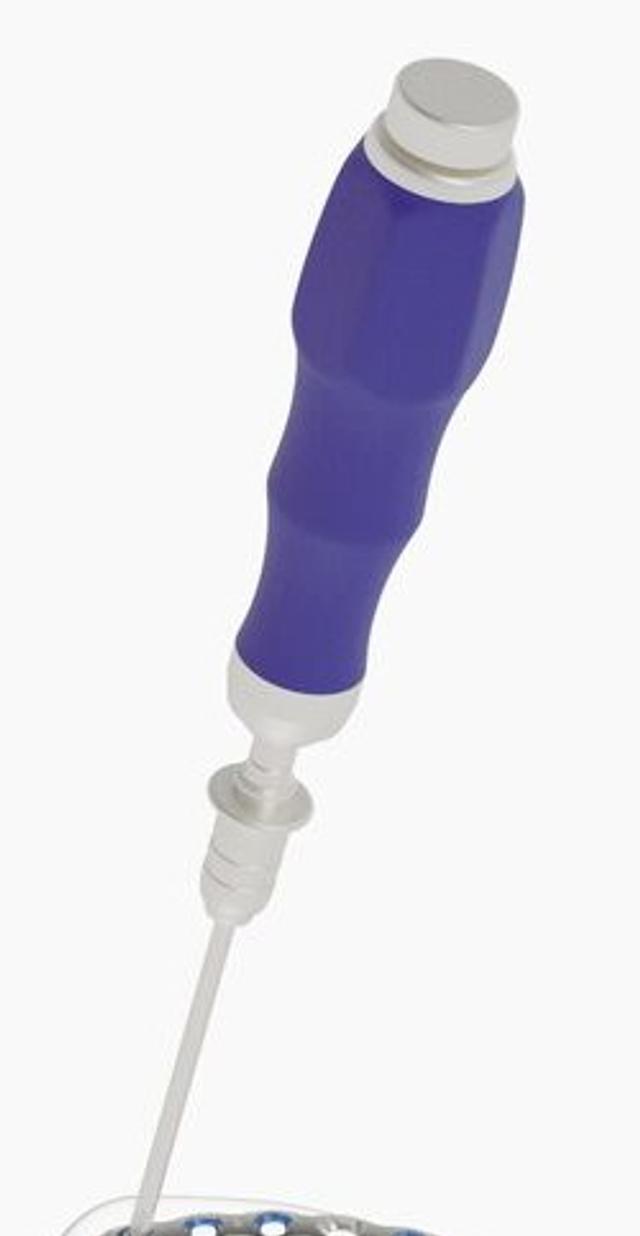

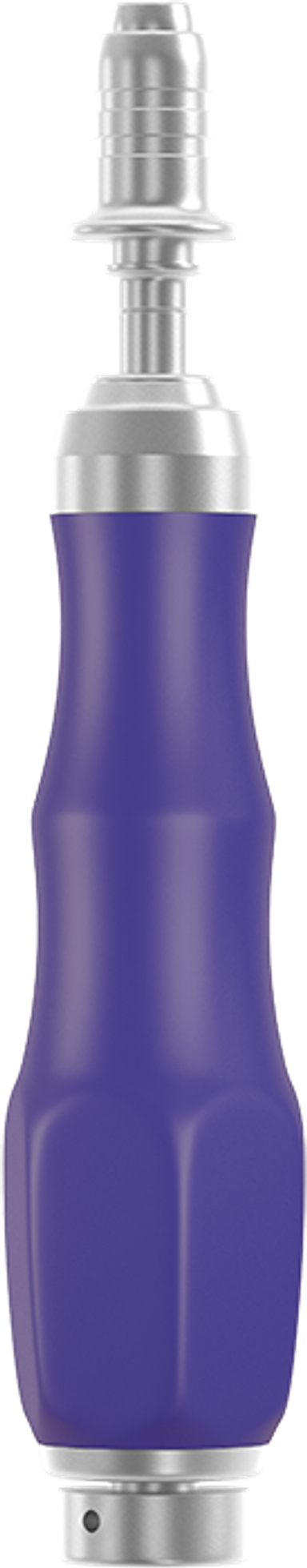

TORQUE LIMITING SCREWDRIVER HANDLE 3.5MM

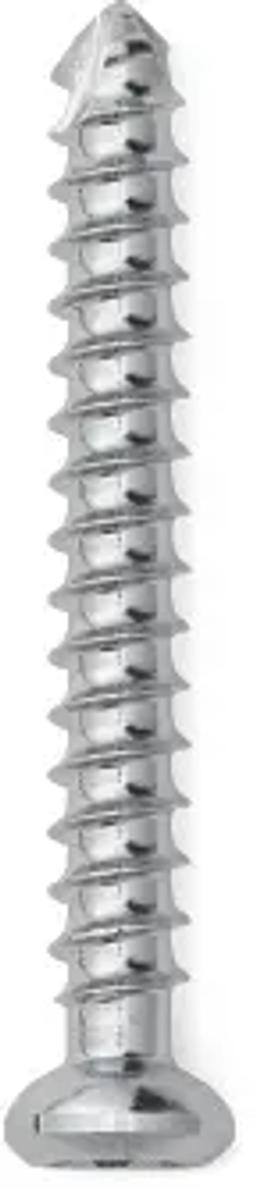

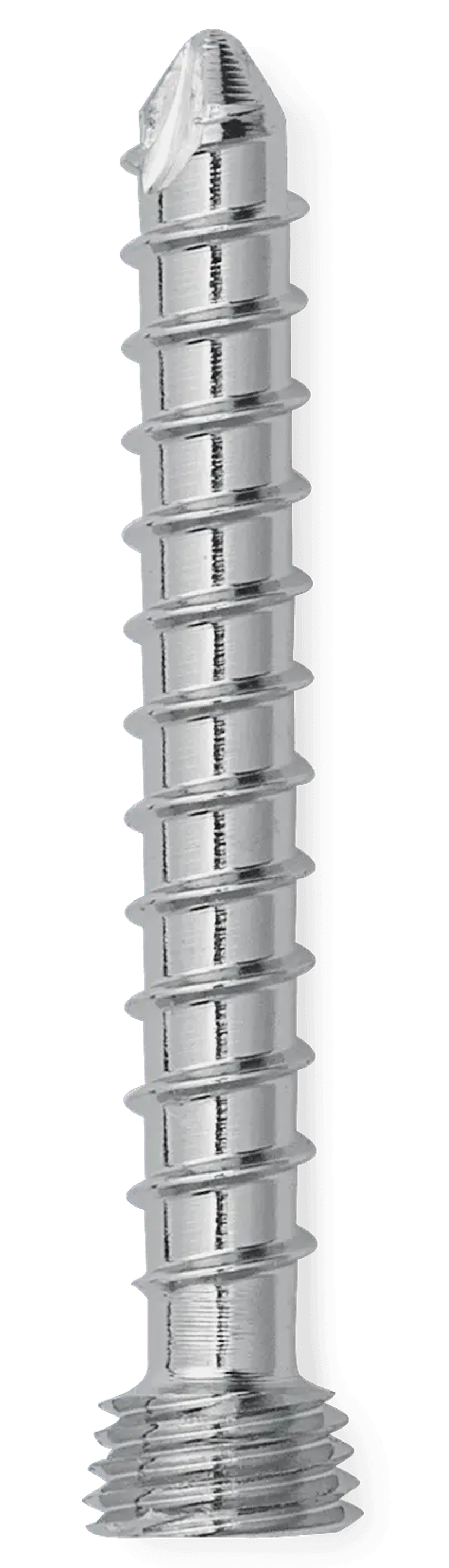

3.5MM SCREWS
